The Silver Bridge Tragedy At
the time of the Silver Bridge construction, eyebar bridges had been
built for about 100 years. Such bridges had usually been constructed
from redundant bar links, using rows of four to six bars, sometimes
using several such chains in parallel. The eyebars in the Silver
Bridge were not redundant, as links were composed of only two bars
each, of high-strength steel (more than twice the tensile strength of
common mild steel), rather than a thick stack of thinner bars of modest
material strength "combed" together, as is usual for redundancy. With
only two bars, the failure of one could impose excessive loading on the
second, causing total failure. It did.....
|
_________________________________________________________
THE
SILVER BRIDGE
The
Silver Bridge is listed here because at one time it stood just
downriver from the K & M Railroad Bridge.

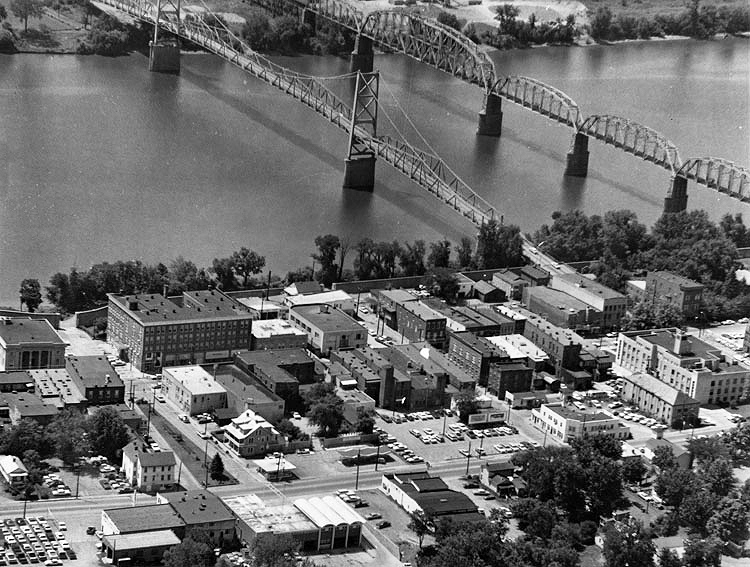

SEE
A LARGE IMAGE OF THE SILVER BRIDGE HERE

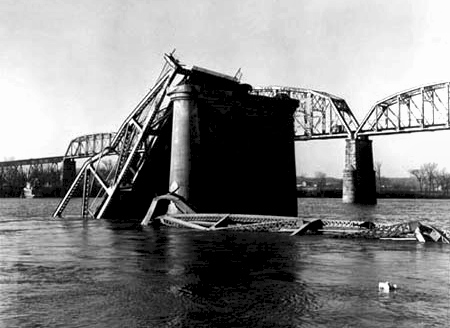

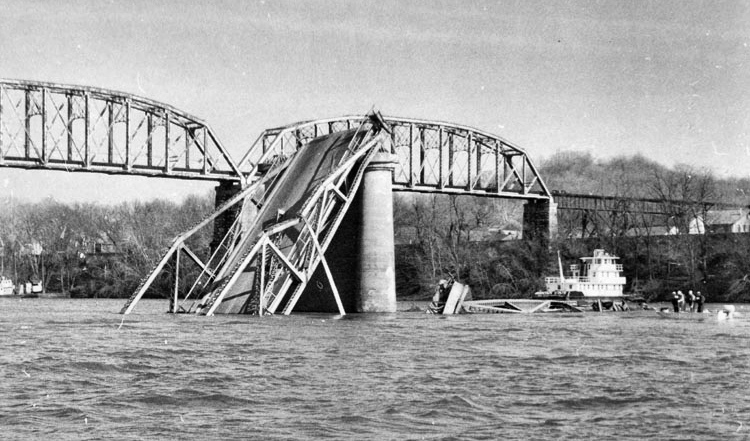

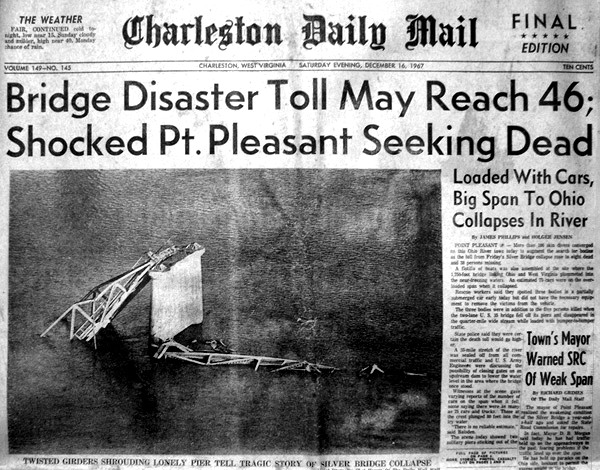

On
December 15,1967 at approximately 5 p.m., the U.S. Highway 35 bridge,
otherwise known as The Silver Bridge connecting Point Pleasant, West
Virginia and Kanauga Ohio suddenly collapsed into the Ohio River. |

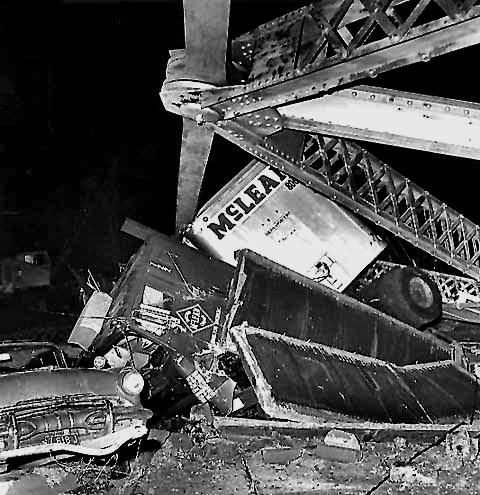

At
the time of failure, thirty- seven vehicles were crossing the bridge
span, and thirty-one of those automobiles fell with the bridge. Forty-
six individuals perished with the buckling of the bridge and nine were
seriously injured. Along with the numerous fatalities and injuries, a
major transportation route connecting West Virginia and Ohio was
destroyed, disrupting the lives of many and striking fear across the
nation. |

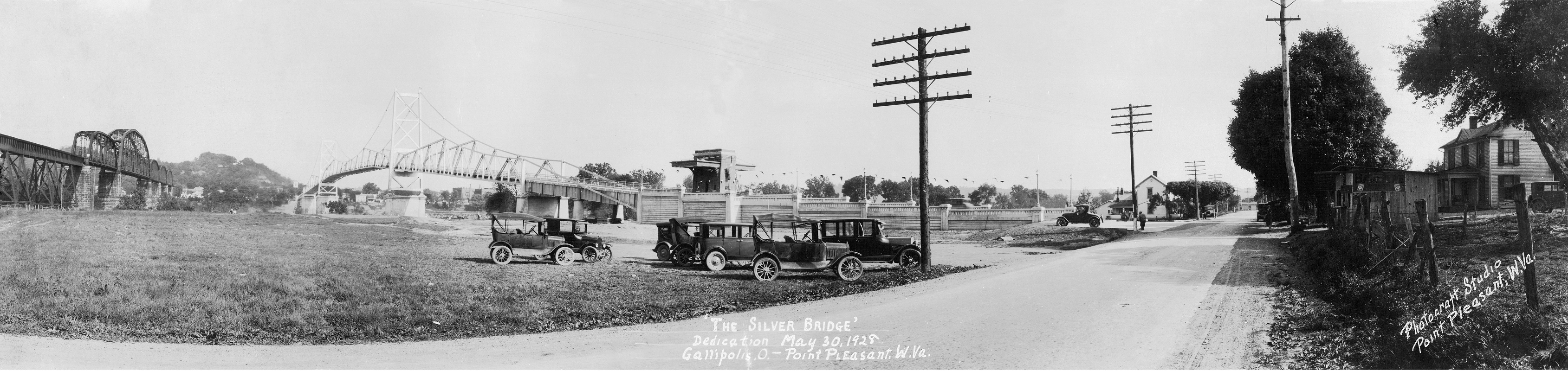

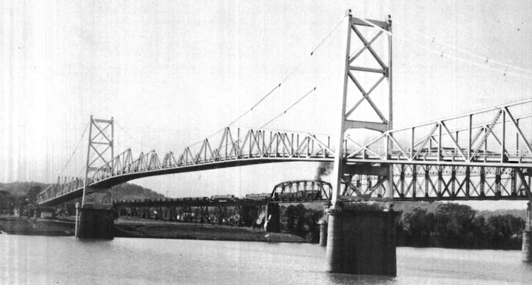

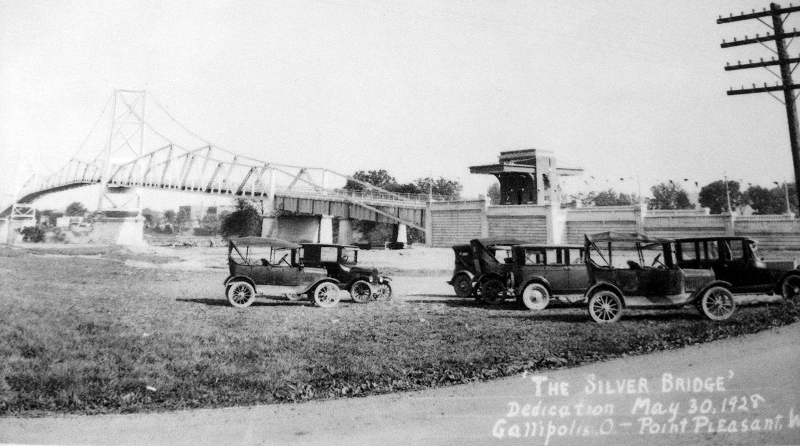

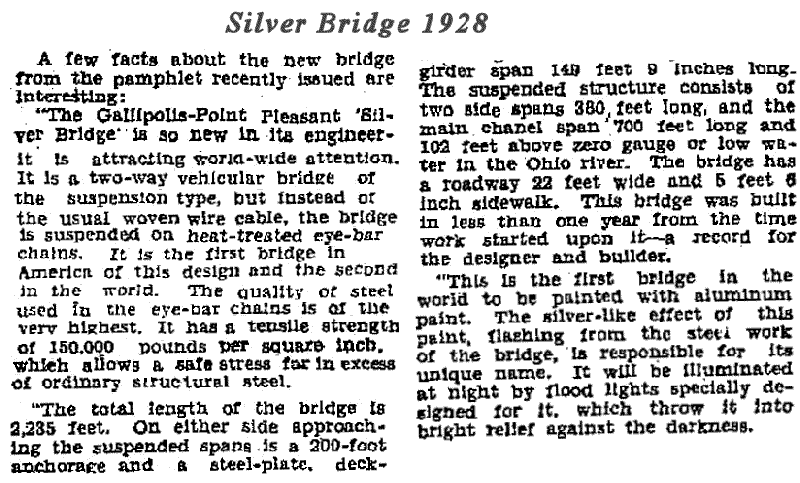

The
bridge was dubbed the 'Silver Bridge' because it was the country's
first aluminum painted bridge. It was designed with a twenty-two foot
roadway and one five-foot sidewalk. Some unique engineering techniques
were featured on the Silver Bridge such as 'High Tension' eye-bar
chains, a unique anchorage system, and 'Rocker" towers. The Silver
Bridge was the first eye-bar suspension bridge of its type to be
constructed in the United States. |
A scale model of the original Silver Bridge can be
seen at the Point Pleasant River Museum. An archive of literature about
the bridge is kept there for public inspection. On the lower ground
floor, the museum displays an eyebar assembly from the original bridge.
